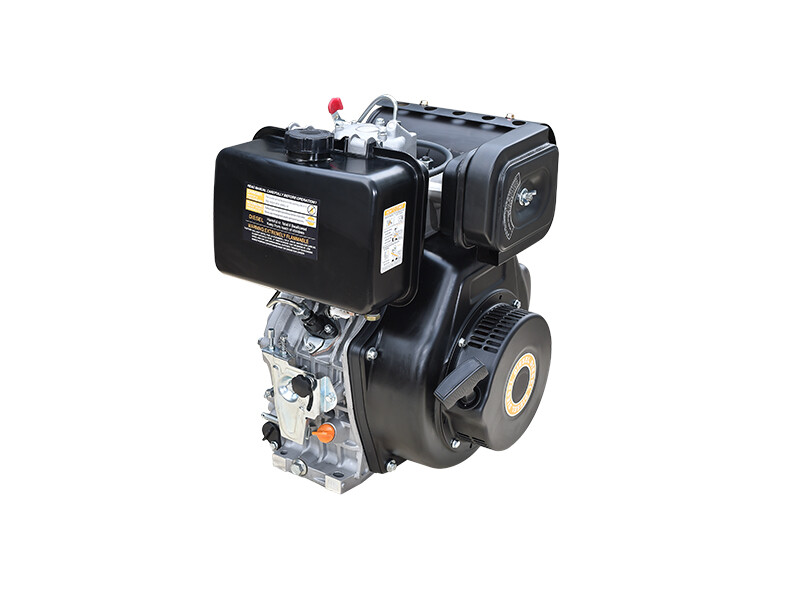

  • FD186FA/FAE

›

FD186FA/FAE
Felimann always follows the advanced engine technology, designed the exquisite fuel injection system, exquisite technology and strict quality concept, so that the Felimann engine output capacity is strong, safe and reliable.
Get A Quote

Product Details

  • Low Vibration and Low Noise

  • Excellent Fuel System

  • Advanced Noise-reduce Design

  • High Quality

  • Easy Start & High Power Output

  • Easy maintenance, low operation cost

  • Wide application

ModelFD186FA/FAE
TypeSingle cylinder, 4-Stroke, Air Cooled, Direct injection, Recoli/Electric Start
Bore x Stroke86x72 mm
Displacement0.418 L
Compression Ratio20:1
Rated Speed3000 rpm
Rated Power5.8/6.6 Kw
Rated Power8/9 hp
Fuel Tank5.5 L
Consumpition275/280 g/kwh
Fuel Type0#(Summer),-10#(Winter),-35#(Chill Cold)Diesel
Lube OilSAE10W30(CD grade above)
Lube Oil Capacity1.65 L
Overall Dimension(LxWxH)420x440x495 mm
Net Weight48/53 Kg
