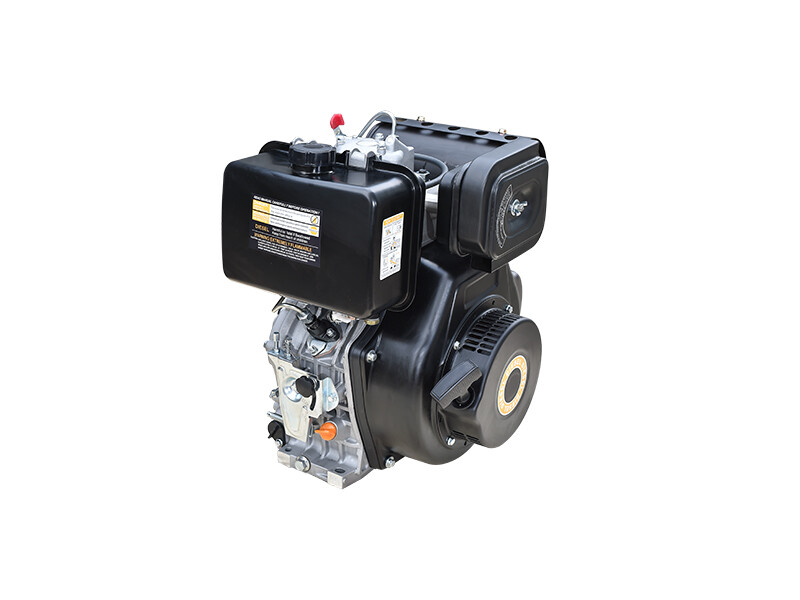

FD178F/FE
Felimann always follows the advanced engine technology, designed the exquisite fuel injection system, exquisite technology and strict quality concept, so that the Felimann engine output capacity is strong, safe and reliable.
Get A Quote

Product Details

  • Low Vibration and Low Noise

  • Excellent Fuel System

  • Advanced Noise-reduce Design

  • High Quality

  • Easy Start & High Power Output

  • Easy maintenance, low operation cost

  • Wide application

ModelFD178F/FE
TypeSingle cylinder, 4-Stroke, Air Cooled, Direct injection, Recoli/Electric Start
Bore x Stroke78x64 mm
Displacement0.296 L
Compression Ratio20:1
Rated Speed3000/3600 rpm
Rated Power3.7/4 Kw
Rated Power5/5.5 hp
Fuel Tank3.5 L
Consumpition275/280 g/kwh
Fuel Type0#(Summer),-10#(Winter),-35#(Chill Cold)Diesel
Lube OilSAE10W30(CD grade above)
Lube Oil Capacity1.1 L
Overall Dimension(LxWxH)383x421x450 mm
Net Weight33/38 Kg
