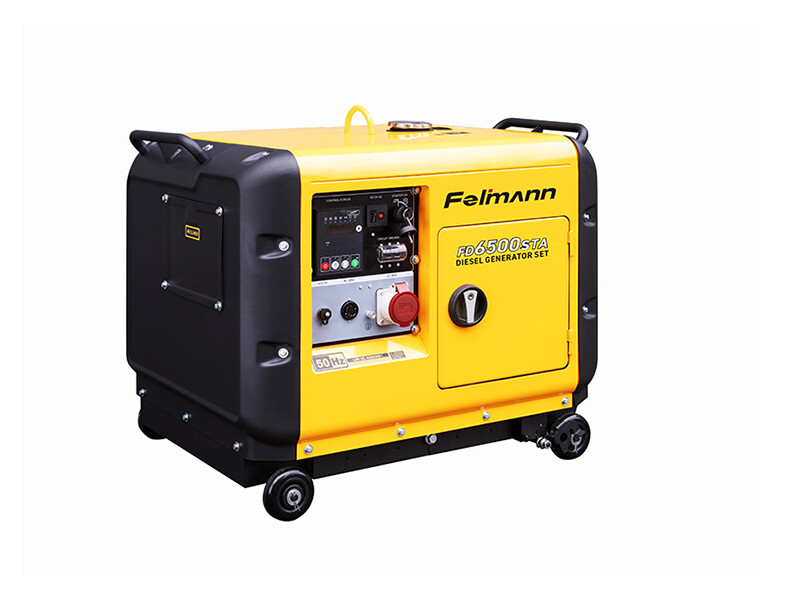

FD6500STA
New design supper silent generator, silent as the aim of research and design, emphasizes at product comfort to meet requirement of high-end users. The sound level achieves international leading level.
Get A Quote

Product Details

Output the power you need

Strong, flexible, general, reliable and durable. You can find the most suitable generator here.


Quieter operation, bigger power

High-efficient combustion system ensures sufficient combustion, muffler reduces exhaust noise greatly; engine noise is isolated in double structure and absorbed by special lining. Wide application and wide range capacity can meet all requirements of clients.


Control panel

All operation functions of the generator set are on the control panel, with a digital readable display showing operation time, output voltage and current. Breakers can protect generator set from overload damage.


Lifting hook and transport wheels

Integrated to enable simple and safe loading and transportation.

MODELFD6500STA(-3)
Frequency50HZ60HZ
Voltage220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 V
Rated Power4.2(5.3)KVA4.5(5.6)KVA
Max. Power4.5(6.3)KVA5.0(6.3)KVA
DC Output12V 8.3A
Phase Number1-phase/3-phase
Excitationself-exciting, brush
Power Factor1.0(0.8)
Insulation GradeF
Fuel Capacity15L
Noise Level(@7m)65dB(A)66dB(A)
Engine ModelFD186FAE
Engine Type1-cylinder,4-stroke,air-cooled,Vertical
Starting SystemElectric start
Broke*Stroke86*72mm
Displacement0.418L
Compression Ratio19.5:1
Rated Rotation Speed3000rpm3600rpm
Rated Power5.8KW6.6KW
Lube Oil Capacity1.65L
Fuel0#(summer),- 10#(winter)diesel
Lube OilSAE10W30(CF grade or above)
OptionalATS
Remote control
Digital smart panel
Overall Dimension995*645*890mm
Net Weight207kg
