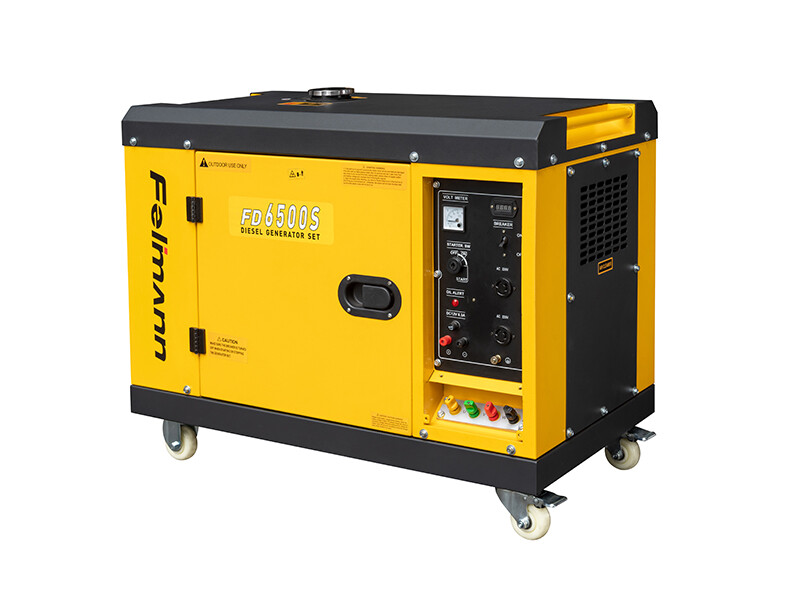

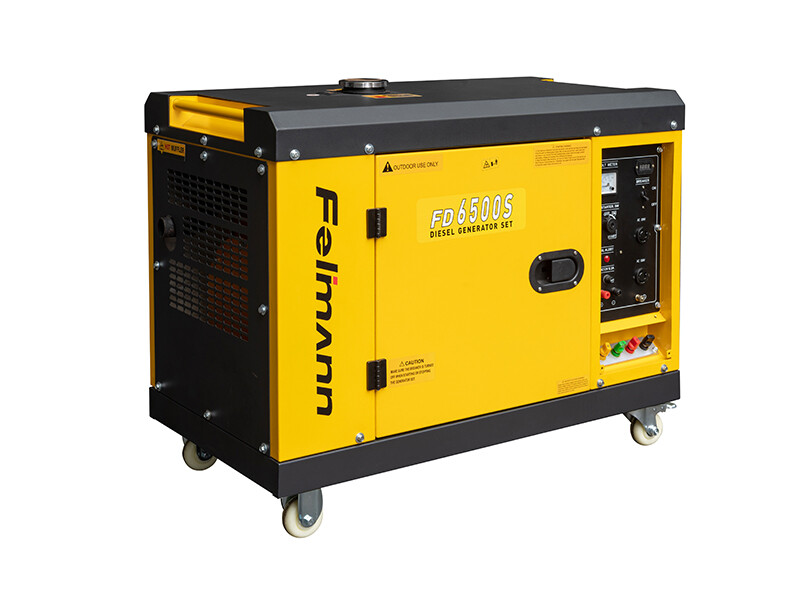

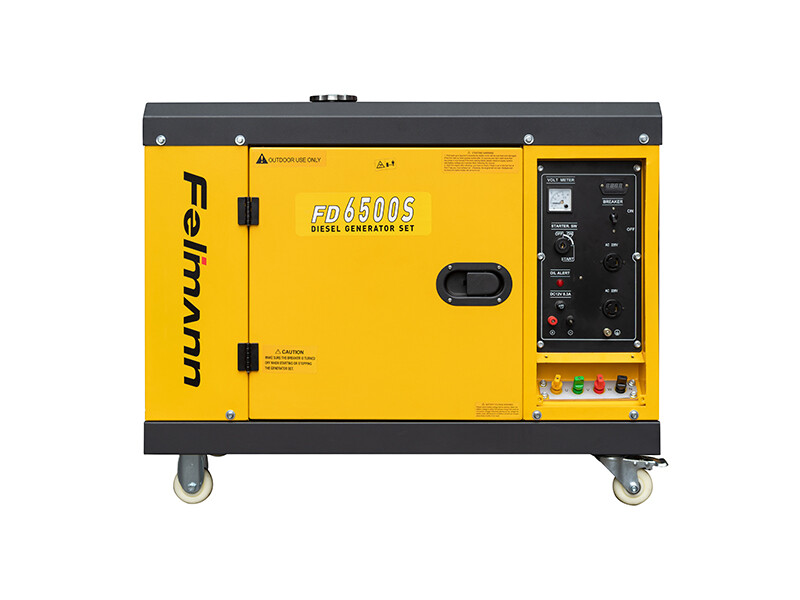

FD6500S
The portable range is ideal for supplying energy to low-power activities and equipment and can be used by both professionals and regular people.
Get A Quote

Product Details

Two-stage muffler device

Scientific damping effect, patent two-stage muffler silencer, advanced air-flue design and muffler device.


High conversion efficiency

100% copper alternator, class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion.


Strong power

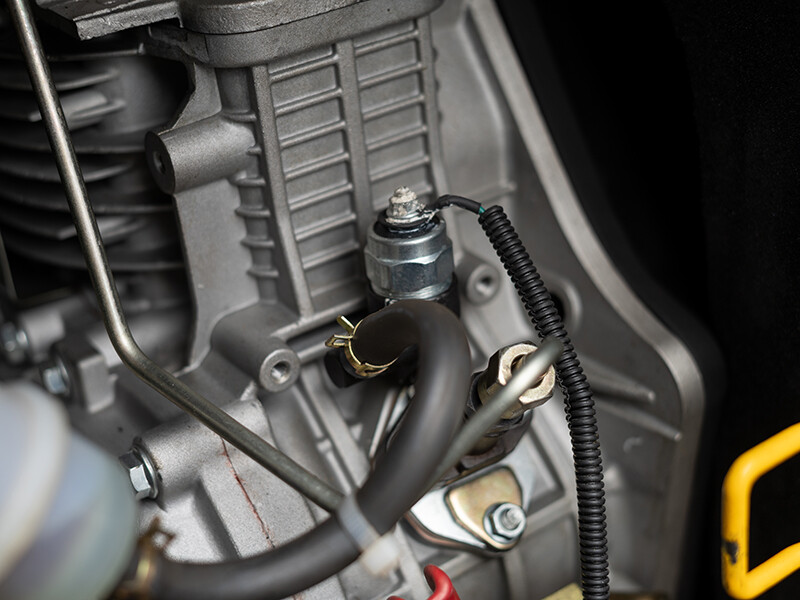

With Felimann four-stoke diesel engine, new tip-clearance fuel pump and bottom inertia injection technology, makes burning full and power strong.


Optional items

Remoter: control anytime anywhere freely. ATS: automatic transfer from city     power and gen-set  power Intelligent digital control panel: with overload, over voltage, over current and low oil pressure protection function.


MODELFD6500S(-3)
Frequency50HZ60HZ
Voltage220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 V
Rated Power4.5(5.6)KVA5.0(6.3)KVA
Max. Power5.0(6.3)KVA5.5(6.9KVA
DC Output12V 8.3A
Phase Number1-phase/3-phase
Excitationself-exciting, brush
Power Factor1.0(0.8)
Insulation GradeF
Fuel Capacity15L
Noise Level(@7m)72dB(A)
Engine ModelFD186FAE
Engine Type1-cylinder,4-stroke,air-cooled,Vertical
Starting SystemElectric start
Broke*Stroke86*72mm
Displacement0.418L
Compression Ratio19.5:1
Rated Rotation Speed3000rpm3600rpm
Rated Power5.8KW6.6KW
Lube Oil Capacity1.65L
Fuel0#(summer),- 10#(winter)diesel
Lube OilSAE10W30(CF grade or above)

ATS
OptionalRemote control

Digital smart panel
Overall Dimension910*530*740mm
Net Weight149kg
