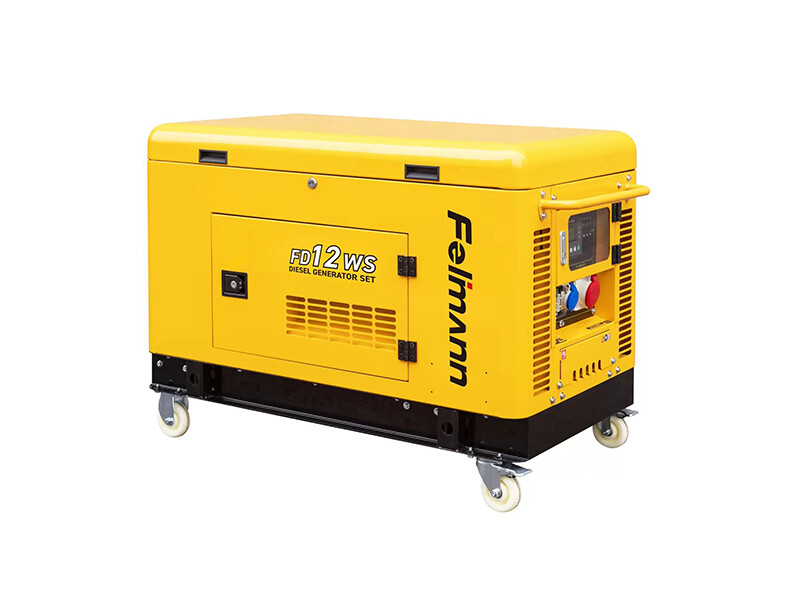

FD12WS
The portable range is ideal for supplying energy to low-power activities and equipment and can be used by both professionals and regular people.
Get A Quote

Product Details

Two-stage muffler device

Scientific damping effect, patent two-stage muffler silencer, advanced air-flue design and muffler device.


High conversion efficiency

100% copper alternator, class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion.


Strong power

With Felimann four-stoke diesel engine, new tip-clearance fuel pump and bottom inertia injection technology, makes burning full and power strong.


Optional items

Remoter: control anytime anywhere freely. ATS: automatic transfer from city     power and gen-set  power Intelligent digital control panel: with overload, over voltage, over current and low oil pressure protection function.

MODELFD12WS(-3)
Frequency50HZ60HZ
Voltage220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 V
Rated Power9.5(12)KVA10(12.5)KVA
Max. Power10(12.5)KVA11(13.5)KVA
Phase Number1-phase/3-phase
Excitationself-exciting, brush
Power Factor1.0(0.8)
Insulation GradeF
Fuel Capacity25L
Noise Level(@7m)72dB(A)
Engine Model2V80
Engine Type2-cylinder,4-stroke,air- cooled,VType
Starting SystemElectric start
Broke*Stroke2-80*79mm
Displacement0.794L
Compression Ratio23.0:1
Rated Rotation Speed3000rpm3600rpm
Rated Power12.5KW14KW
Lube Oil Capacity2.6L
Fuel Type0#(summer),- 10#(winter)diesel
Lube OilSAE10W30(CF grade or above)
OptionalATS
Remote control
Digital smart panel
Overall Dimension1110*700*780mm
Net Weight258kg
