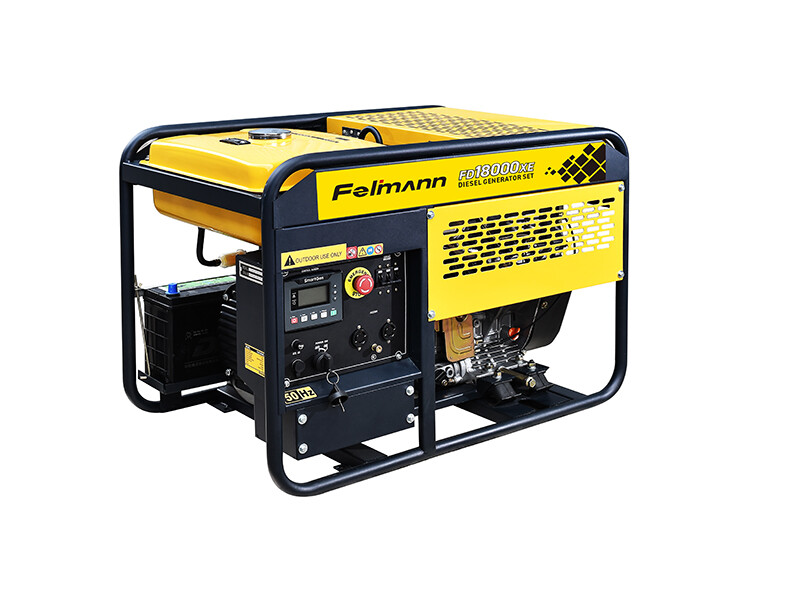

FD18000XE
Felimann open frame generator set has the support of working professional everywhere. This diesel powered generator line is produced in three versions to accommodate the most common applications. All offer great durability, low vibration, quiet operation, and recoil or conve-nient electric starting.
Get A Quote

Product Details

Delivering the power you need

Powerful, flexible, versatile, reliable, durable; Felimann open frame generator sets have it covered on every level.


High conversion rate

100% copper alternator, class F insulation, high conversion rate.


Stable output

Smart AVR controller ensures stable voltage and less voltage waveform distortion.


Control panel

All operating functions of the generator sets are on the panel. A digital readout displays operating parameters in realtime such as output voltage and amperage. Circuit breakers protect the generator from overloads.


Easily portable

An open frame configuration means it’s easy to handle and store when not in use.Wide applicationVarious output sockets are available to meet all customers'requirements.


MODELFD18000XE(-3)
Frequency50HZ60HZ
Voltage220,230,240,110/220,127/220,115/230,120/240,220/380,230/400,240/415 V
Rated Power15(18.8)KVA16(20)KVA
Max. Power16(20)KVA17(21.2)KVA
Phase Number1-phase/3-phase
Excitationself-exciting, brush
Power Factor1.0(0.8)
Insulation GradeF
Fuel Capacity25L
Noise Level(@7m)75dB(A)
Engine Model2V95
Engine Type2-cylinder,4-stroke,air- cooled,VType
Starting SystemElectric start
Broke*Stroke95*88mm
Displacement1.247L
Compression Ratio20.0:1
Rated Rotation Speed3000rpm3600rpm
Rated Power19KW21KW
Lube Oil Capacity4L
Fuel Type0#(summer),- 10#(winter)diesel
Lube OilSAE10W30(CF grade or above)
OptionalATS
Remote control
Digital smart panel
Overall Dimension1250*720*880mm
Net Weight270kg
