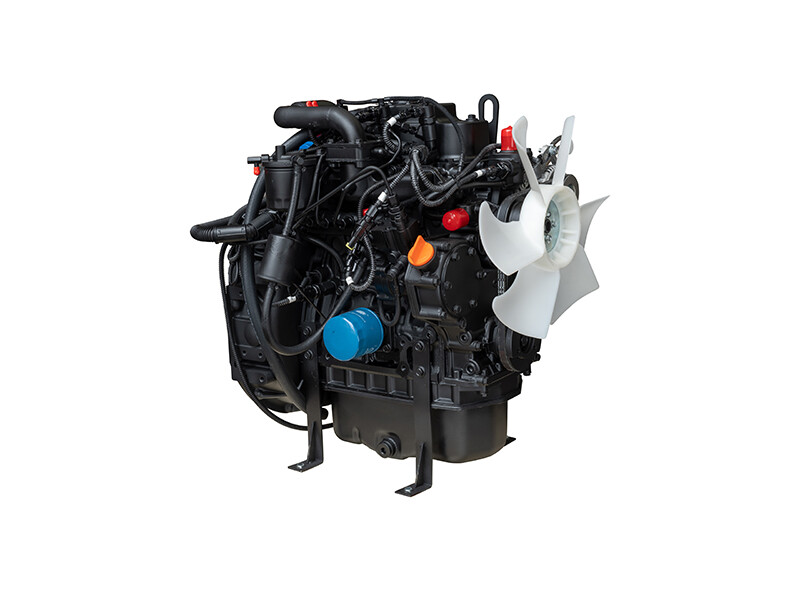

FD488Z
Felimann always follows the advanced engine technology, designed the exquisite fuel injection system, exquisite technology and strict quality concept, so that the Felimann engine output capacity is strong, safe and reliable.
Get A Quote

Product Details

  • Integral cylinder

  • Adjustable coolant temperature

  • Mixed lubrication

  • Wide range of applications

ModelFD488Z
Type4-cylinder,4-stroke,Water-cooled,inline,Electircstart

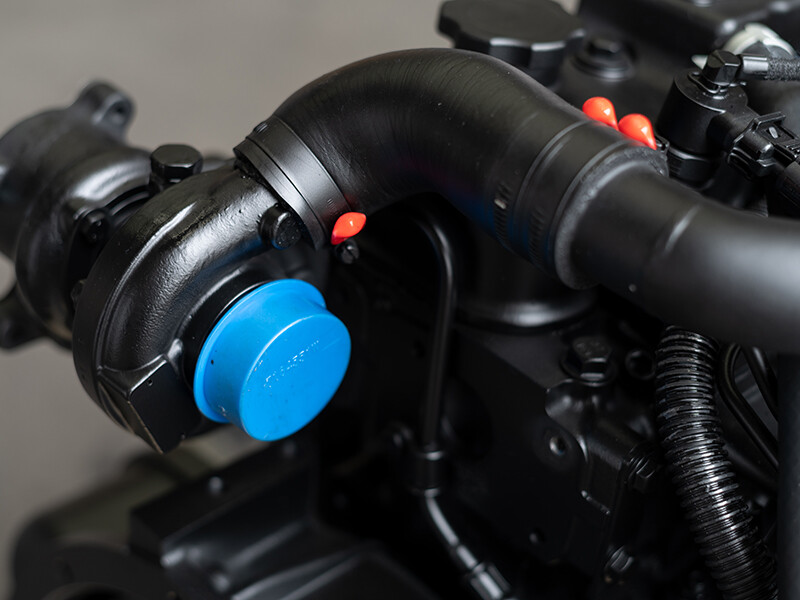

FeatureTurbo charger
Bore x Stroke88×90 mm
Displacement2.19 L
Compression Ratio18.2:1
Rated Power21.5/1500 kW/rpm
Rated Speed25.5/1800 kW/rpm
Max Torque/Speed154/1800 N.m/rpm
Min.Adjustable Idle Speed≤1000 rpm
Lubrication SystemPressure Splash
Rotating(Face PTO)Anticlockwise
Fuel Type0#(Summer),-10#(Winter),-35#(Chill Cold)Diesel
Fuel Consumption230/1500,258/3000 g/kWh
Lube8.5L SAE10W-30、15W-40(CD grade or above)
Coolant Capacity (Engine)2.29 L
Coolant Capacity(Radiator)3.7 L
Start Motor12V 1.4KW
DC Alternator14V 20A
Battery Capacity12V 65Ah
Dimension(LxWxH)705x480x642 mm
Net Weight179 kg
